Higher order diff tool that helps humans to control architecture and agents to generate interactive tours over their changes.

The city is the code. Packages are buildings; a package's sub-packages stand on its roof. A type is a wide pale block holding its methods. A function or method is a tower whose height is its body size. A call is an arc from the top of the caller to the top of what it calls.

Install

curl -fsSL https://raw.githubusercontent.com/naqerl/citydiff/main/install.sh | sh

The installer resolves the latest release, verifies its published sha256, installs the binary to ~/.local/bin, and writes two agent skills: citydiff to ~/.agents/skills/citydiff, and citydiff-tour (writing tours) to ~/.agents/skills/citydiff-tour, plus ~/.claude/skills and ~/.cursor/skills when those agents are installed. Re-running it is safe: it only rewrites files it owns and leaves a SKILL.md it did not write alone. It also supports env vars and flags:

# a specific tag
curl -fsSL https://raw.githubusercontent.com/naqerl/citydiff/main/install.sh | sh -s -- --tag=v0.0.2

# choose where things go
BIN_DIR=~/.local/bin SKILLS_DIR=~/.agents/skills AGENTS_MD=~/AGENTS.md \
  sh install.sh

# skip the agent skills / don't touch PATH
sh install.sh --no-skills --no-path

# only the tour skill, into chosen skill dirs
curl -fsSL https://raw.githubusercontent.com/naqerl/citydiff/main/install.sh | \
  SKILL_TARGETS="$HOME/.claude/skills $HOME/.agents/skills" sh -s -- --skills-only

# build the binary from source (git, go and a C compiler) instead of a release
sh install.sh --from-source

# remove binary, skill and AGENTS.md pointer
sh install.sh --uninstall

Quick start

Parse a file or a project tree (no diff — one snapshot):

citydiff -path ./service/flashcard/flashcard.go -json
citydiff -path . -json | jq '.[] | {path, decls: (.entries | length)}'

Diff a commit range inside a git repository:

cd ~/src/myrepo
citydiff -path . -range main~5..main            # human-readable
citydiff -path . -range main~5..main -json      # machine-readable
citydiff -path . -range v0.0.1...v0.0.2         # three-dot: merge-base vs right

Serve the 3D viewer (-view never exits — run it in a terminal or in the background):

citydiff -path ~/src/myrepo -range main~5..main -view -addr 0.0.0.0:8787

The same viewer runs in Docker. From this repository, make run-docker builds the image, mounts the project at /work, and diffs the two latest commits:

make run-docker DOCKER_PATH=~/src/myrepo DOCKER_RANGE=main~5..main

then open http://localhost:8787 (PORT changes the host port). The page reads the scene from GET /scene.json; the viewer assets are embedded in the binary.

Command line

citydiff [-json | -scene | -view [-tour file]] -path file-or-directory [-range A..B]
citydiff nodes [-path dir] [-range A..B] [-changed] [-kind k] [-json]
citydiff tour validate|serve [-path dir] [-range A..B] [-json] [-addr host:port] tour.json
citydiff tour schema

Notes:

• With -range, -path must live inside a git checkout: the nearest parent directory containing .git is the repository, and the tree at each ref is read straight from the object database with go-git — the working tree does not need to be checked out at either ref.
• Without -range, the filesystem tree is parsed and there is no diff. The viewer says so.
• Only Go, Rust and Swift source files are parsed. A commit that touches only other files (*.js, *.sql, …) produces an empty diff.
• -json, -scene and -view are mutually exclusive; the first one given wins.

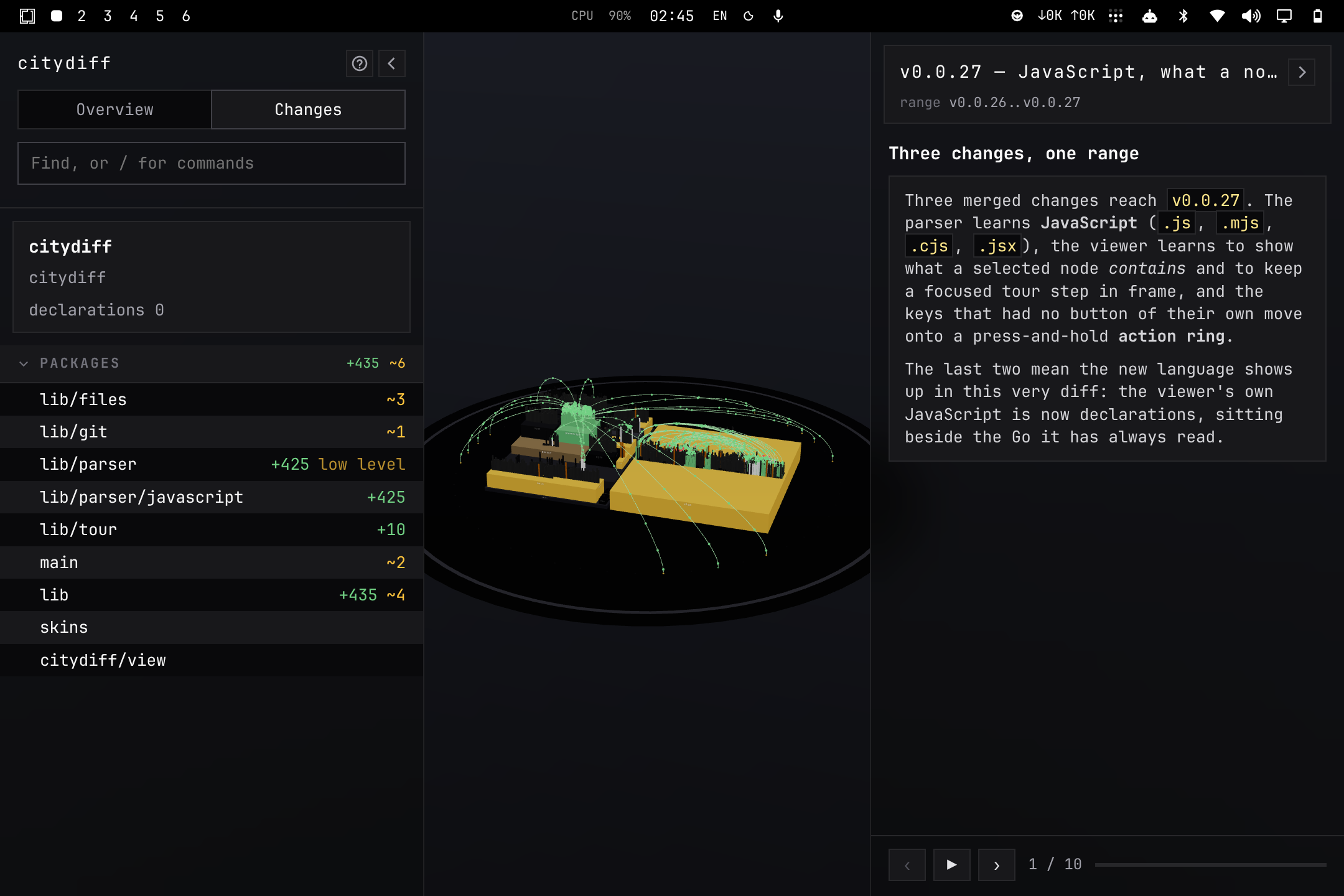

The 3D view

Two modes, toggled by the Overview / Changes buttons, m, or keys 1 and 2:

• Overview — the city as it is: packages, their sub-packages, types and towers, and the cross-module dependency arcs between packages.
• Changes — the same city with the diff laid on top: added and deleted towers appear, changed ones take the change colour, and changed cross-module calls are drawn.

Selecting a package descends into it; selecting a tower opens its call path. The sidebar shows the change for whatever is selected, with the resolved calls in source order. Under the selected node the sidebar offers Calls / Callers — a node with nothing to show (a package with no declarations, a type with no methods) gets neither — and the c key flips them, picking which way the arcs run for any node: Calls draws the functions a tower calls (particles leaving it) or the packages a package depends on, Callers draws the functions that call it or the packages that depend on it. Callers use the same arcs, with the particles running back toward the node. Only one of the two is on at a time, and it applies to a type through the methods it declares.

The viewer keeps a vim-style jump list of every node you select. Press o to step to an older selection and i to step to a newer one — the same directions as vim's <C-o> and <C-i>. Selecting a new node after going back truncates the forward tail, exactly as vim does. The sidebar note shows your position (jump 2/5) once the list has more than one entry.

Tours

A tour is a versioned JSON script over the scene of one commit range: an ordered list of steps the viewer plays. It is meant to be written by an agent (see the citydiff-tour skill) or by hand. The schema is lib/tour/tour.schema.json (citydiff tour schema prints it), and examples/barse-flashcard-versions.tour.json is a full example.

{
  "version": 1,
  "title": "Flashcard versions",
  "range": "dbdafc00..061e9aed",
  "steps": [
    { "title": "The whole change", "note": "Markdown **note**.", "mode": "changes", "camera": "overview" },
    { "title": "The generator", "select": "service/flashcard/generator" },
    { "title": "Picking the final", "focus": "review.Service.SelectFinal", "code": "review.Service.SelectFinal" },
    { "title": "Handler to view", "path": { "from": "handler.handlePostSelectFinal", "to": "meetings/view.versionBar" } },
    { "title": "Storage", "highlight": ["db.Queries.SetGenerationFinal", "generator.FinalVersion"], "dim": false }
  ]
}

Names are what you would write: a package path or a unique tail of it (barse/db, db), a Go declaration (pkg/path.Func, pkg.Type.Method, Type.Method), a Rust item (crate::mod::f, <T as Trait>::m), a Swift declaration (Module.Type.method, Type.method, Module.func), or a scene id. A name matching several nodes is an error that lists the candidates; an unknown name comes with suggestions.

citydiff nodes -path ~/src/barse -range dbdafc00..061e9aed -changed       # the names to use
citydiff tour validate -path ~/src/barse tour.json                         # resolve every name; exit 1 on problems
citydiff tour validate -path ~/src/barse tour.json -json                   # the resolved script
citydiff tour serve -path ~/src/barse -addr 127.0.0.1:8787 tour.json       # validate, then serve the viewer with it

-range defaults to the script's own range; ranges are compared by commit, so abbreviated hashes and refs match. A running viewer also plays ?tour=<url> (fetched by the browser) and a script dropped onto the page; the server resolves those through POST /api/tour with the same checks as the CLI.

The tour plays in a right sidebar that mirrors the left one: the tour title and range, the step's note and code, the roadmap (click a step to jump; the current one is marked), and the player controls at the bottom. space plays and pauses (autoplay uses the durations), , and . step back and forward, and t hides and shows the sidebar the way b does the left one. Dragging or clicking in the city pauses autoplay. The camera centres and fits in the space between the two sidebars, and re-centres when either one is shown or hidden.

Loading a tour moves the viewer to the tour's range: tour serve starts on it, -view -tour switches to it at startup, and a ?tour= or dropped script makes the server rebuild the scene for that range (when it differs, compared by commit) and the page reload into it, so the left sidebar shows the tour's changes. A range that does not resolve in the repository is reported in the tour sidebar and leaves the current scene alone.

JSON output

A parsed snapshot (-json, no -range) — one object per file:

[{"path": "lib/entity.go", "package": "lib", "importPath": "citydiff/lib", "module": "citydiff",
  "entries": [{"kind": "function", "entry": {"name": "…", "calls": [{"expr": "q.db.ExecContext"}]}}]}]

A diff (-json -range) — one object per file, action = added / modified / deleted, each with one entry per declaration change:

[{"path": "db/flashcard.sql.go", "action": "modified",
  "changes": [
    {"action": "added",
     "right": {"kind": "method", "entry": {"name": "ClearGenerationFinal",
               "parameters": [{"name": "ctx", "type": "context.Context"}],
               "returnArgs": [{"type": "error"}],
               "calls": [{"expr": "q.db.ExecContext"}]}}},
    {"action": "modified", "kind": "function", "name": "serve",
     "edits": [{"field": "bodyHash", "left": "9373749d…", "right": "26138d04…"},
               {"field": "bodyBytes", "left": 410, "right": 408}]}
  ]}]

• kind — import, type, variable, function, or method.
• entry.calls — direct calls recorded on the declaration, in source order, including calls inside nested function literals. expr is the callee as written. A ref is filled in when the callee is declared inside the same snapshot; a call to something outside it stays unresolved and is kept — the diff decides which calls matter.
• bodyHash / methodsHash — the signal that a body changed beyond its call list. bodyBytes says whether it grew or shrank.
• edits[].field — one of fields, parameters, returnArgs, receiver, bodyHash, bodyBytes, calls, methodsHash.

-scene prints the viewer's own graph ({module, root, diff, packages}), and -view serves that same document at /scene.json. A package is a {id, name, dir, parent, change, entities[], deps[]} node; an entity carries kind, change, bodyBytes, and aligned calls[] steps.

How it works

The core is small and language-agnostic. A parser turns a stream of files into Entity values: imports, types, variables, functions, methods, each with its direct calls in source order. That stream is the closed world for the parse — resolution never depends on file order, and a declaration in the first file can resolve a call in the last. Collect the stream, then fill refs.

Two sources produce the same stream:

• filesystem — walks a file or directory tree (lib/files);
• git — reads the tree at each ref of a range with go-git (lib/git).

Each side of a range is a separate stream and a separate parse. lib/diff pairs files by path and declarations by the same identity used for a single file, so a name shared by two files stays two declarations. Body hashes stay the signal that a body changed beyond its call list. lib/scene folds the result into the city the viewer draws.

Supported languages today: Go, Rust and Swift (lib/parser/go, lib/parser/rust, lib/parser/swift), all via tree-sitter.

Swift modules come from Package.swift: each target (Sources/<Target>, Tests/<Target>, or its path:) is one module named after the target, sharing one namespace across its files. Without a manifest the top folder is the module, as in an Xcode project. .build/ and DerivedData/ are skipped. Members of extension T belong to T; members of a conformance extension (extension T: P) are kept apart as <T as P> in the parser, like a Rust trait impl, and filed under T in the city. Calls resolve within the module and the package modules a file imports: free functions, Type(...) as an initializer, Type.f, self.m() and implicit self, supertypes and protocol extensions, and methods on locals whose type is known from let x = Type(...), an annotation, a parameter, a return type or a property. Overloads are told apart by argument labels; a call that still matches several declarations, or a struct's implicit memberwise initializer, stays unresolved. Each overload is its own building, but a resolved call is drawn to the first overload of that name in its file. Adding a language means adding a parser package that yields the same Entity values — nothing downstream changes.

Build from source

Requires Go 1.27+ and a C toolchain: the parsers link the tree-sitter C bindings, so CGO is mandatory (CGO_ENABLED=0 fails with "build constraints exclude all Go files").

git clone git@github.com:naqerl/citydiff.git
cd citydiff
make vet
CGO_ENABLED=1 go build -o citydiff ./cmd/cli
./citydiff -path . -json > /dev/null

make vet runs go vet ./...; go fmt via make fmt. The release workflow builds natively per runner (linux/amd64, darwin/arm64) instead of cross-compiling, because of CGO.

Releases

.github/workflows/release.yml runs vet + build + a smoke test on every push and PR to main. On a v* tag it also publishes a GitHub Release with citydiff-<tag>-<os>-<arch>.tar.gz per platform plus checksums.txt.

Repository map

Known limitations

• The git source uses go-git and does not follow a linked worktree .git file. Run -range from the main checkout (a normal checkout whose .git is a directory).
• Only Go, Rust and Swift files are parsed; other file types are invisible to the diff.
